Reference card / CC-ECG-13
LVH & Secondary Repolarization
Voltage criteria and secondary ST–T patterns in left ventricular hypertrophy.

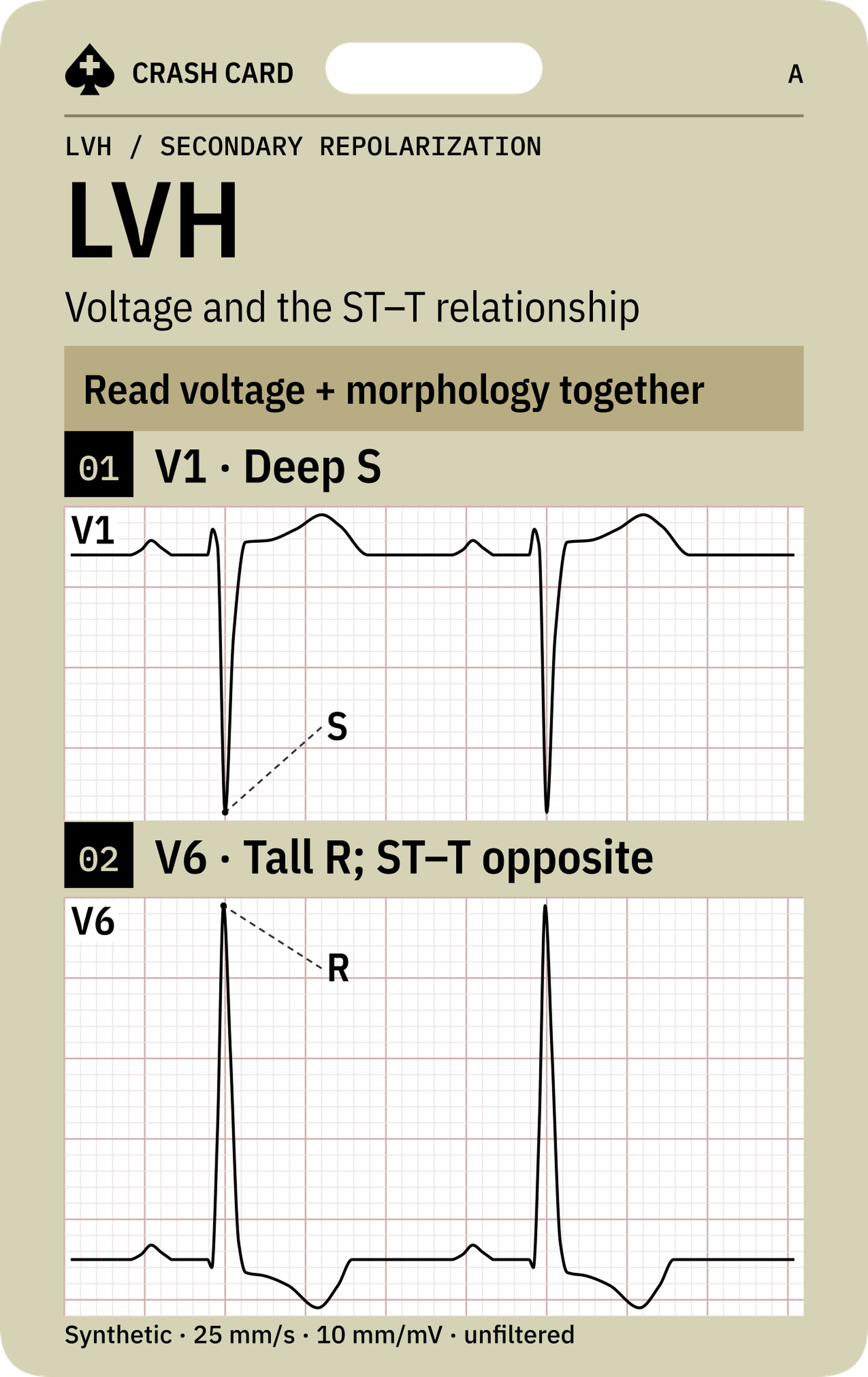

- V1 S and V6 R waveform pointers
- Sokolow–Lyon and Cornell voltage criteria

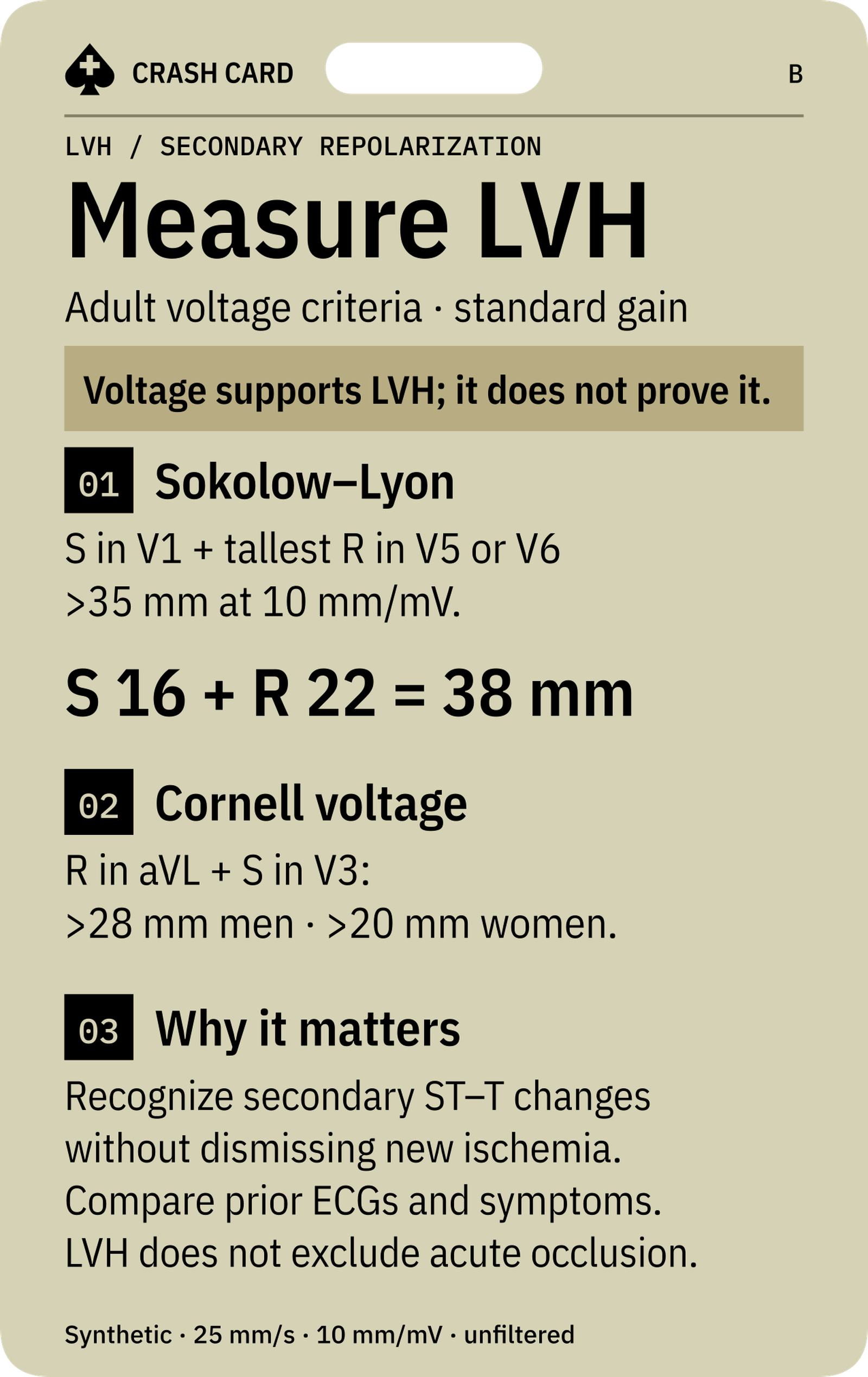

- Why secondary changes must be distinguished from new ischemia
One two-sided card · Tap the card to enlarge
Specifications
- Catalogue
- CC-ECG-13
- Revision
- Pointers and Clinical Purpose v1
- Format
- One CR80 portrait card · 85.60 × 53.98 mm
- Stock
- 30 mil white PVC
- Finish
- Matte
- Printing
- Full colour · two-sided
- Opening
- Slot punched
- Availability
- Available
