Reference card / CC-ECG-12
Lead Placement & Reversal
Recognize arm-lead reversal and check chest-lead landmarks.

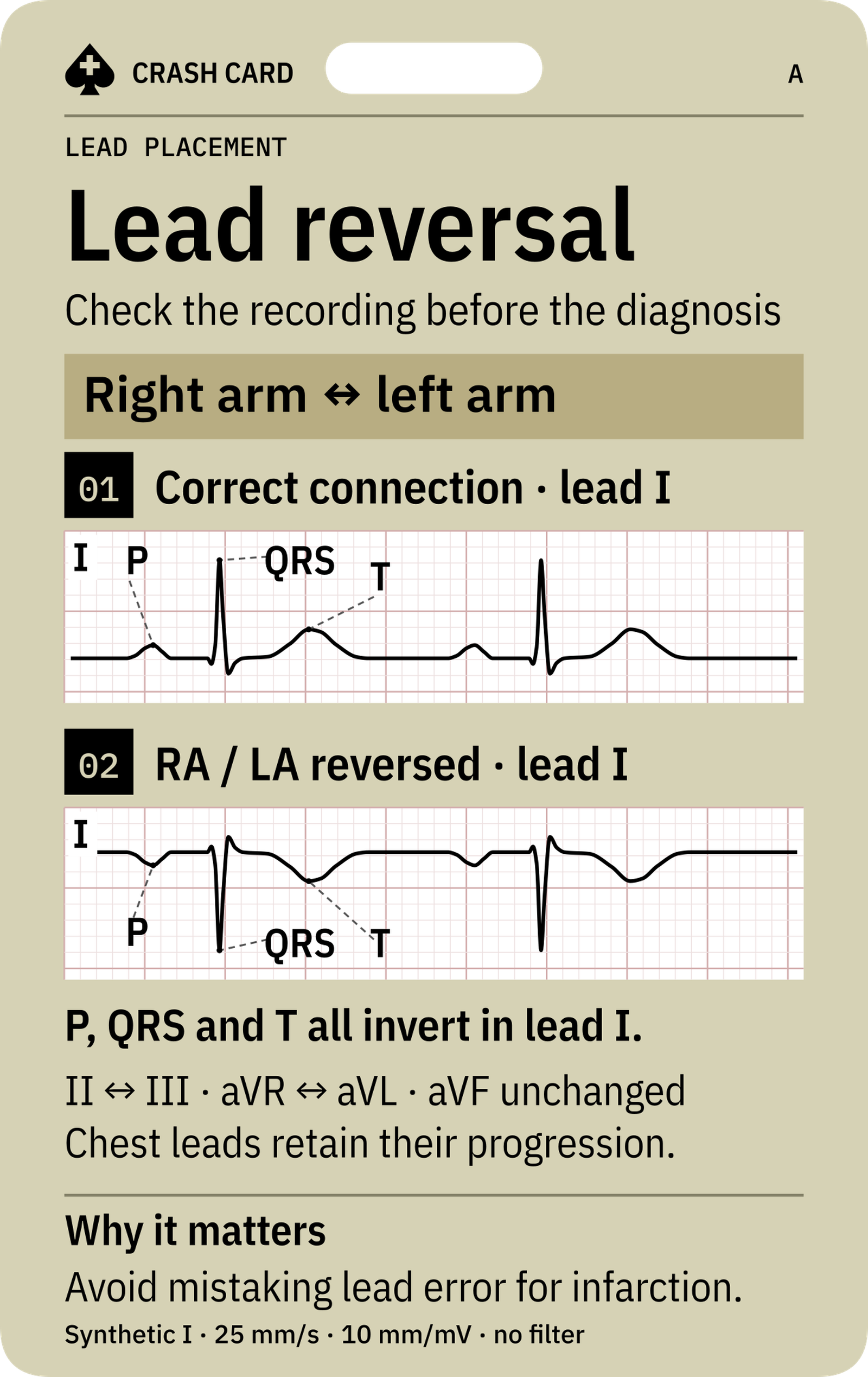

- Normal and reversed lead I with P, QRS and T pointers

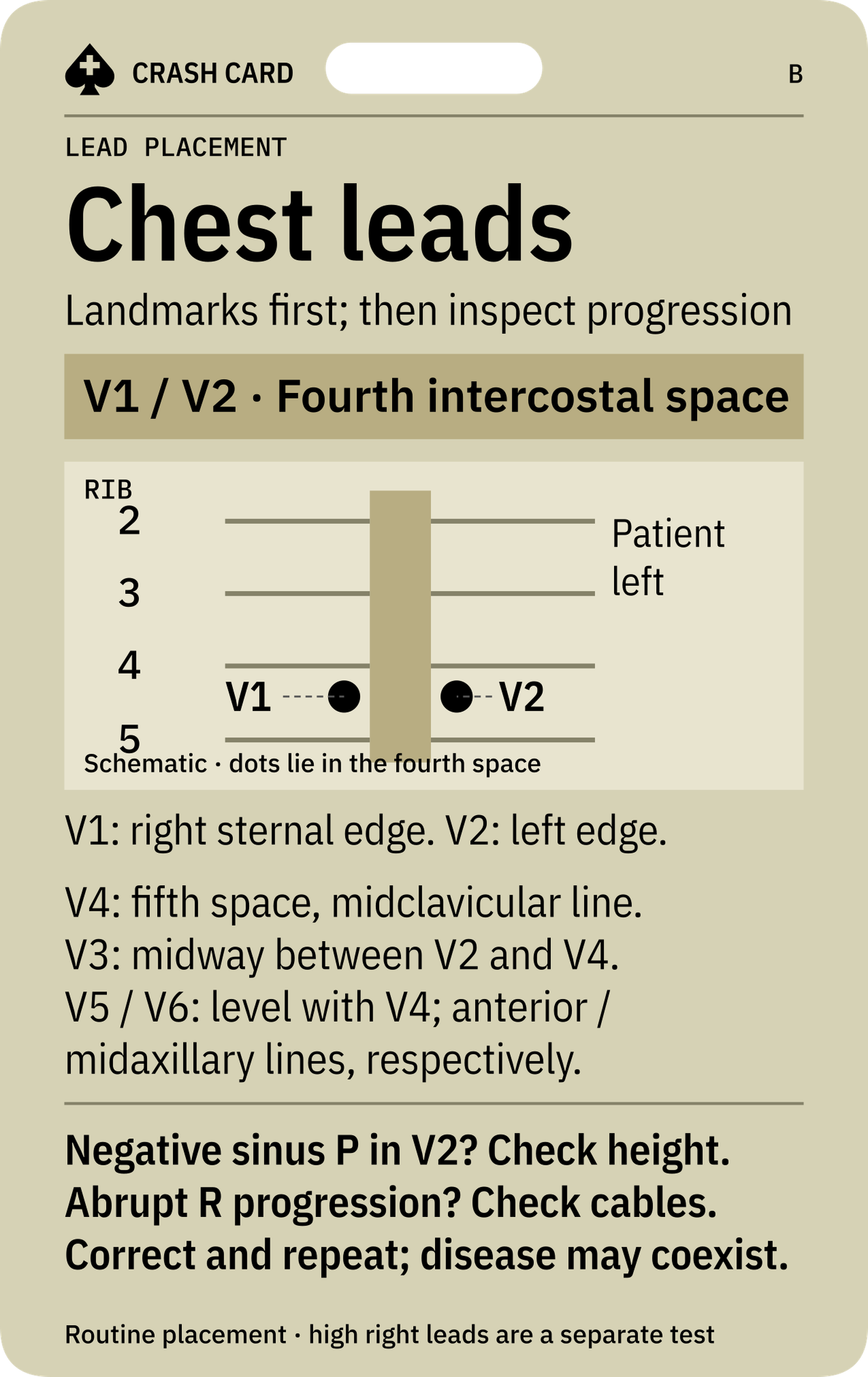

- V1–V6 placement and troubleshooting clues
- Why lead errors can be mistaken for infarction
One two-sided card · Tap the card to enlarge
Specifications
- Catalogue
- CC-ECG-12
- Revision
- Pointers and Clinical Purpose v1
- Format
- One CR80 portrait card · 85.60 × 53.98 mm
- Stock
- 30 mil white PVC
- Finish
- Matte
- Printing
- Full colour · two-sided
- Opening
- Slot punched
- Availability
- Available
