Reference card / CC-ECG-07
Fascicular Block Recognition
LAFB and LPFB recognition with axis, lead morphology and conduction-block context.

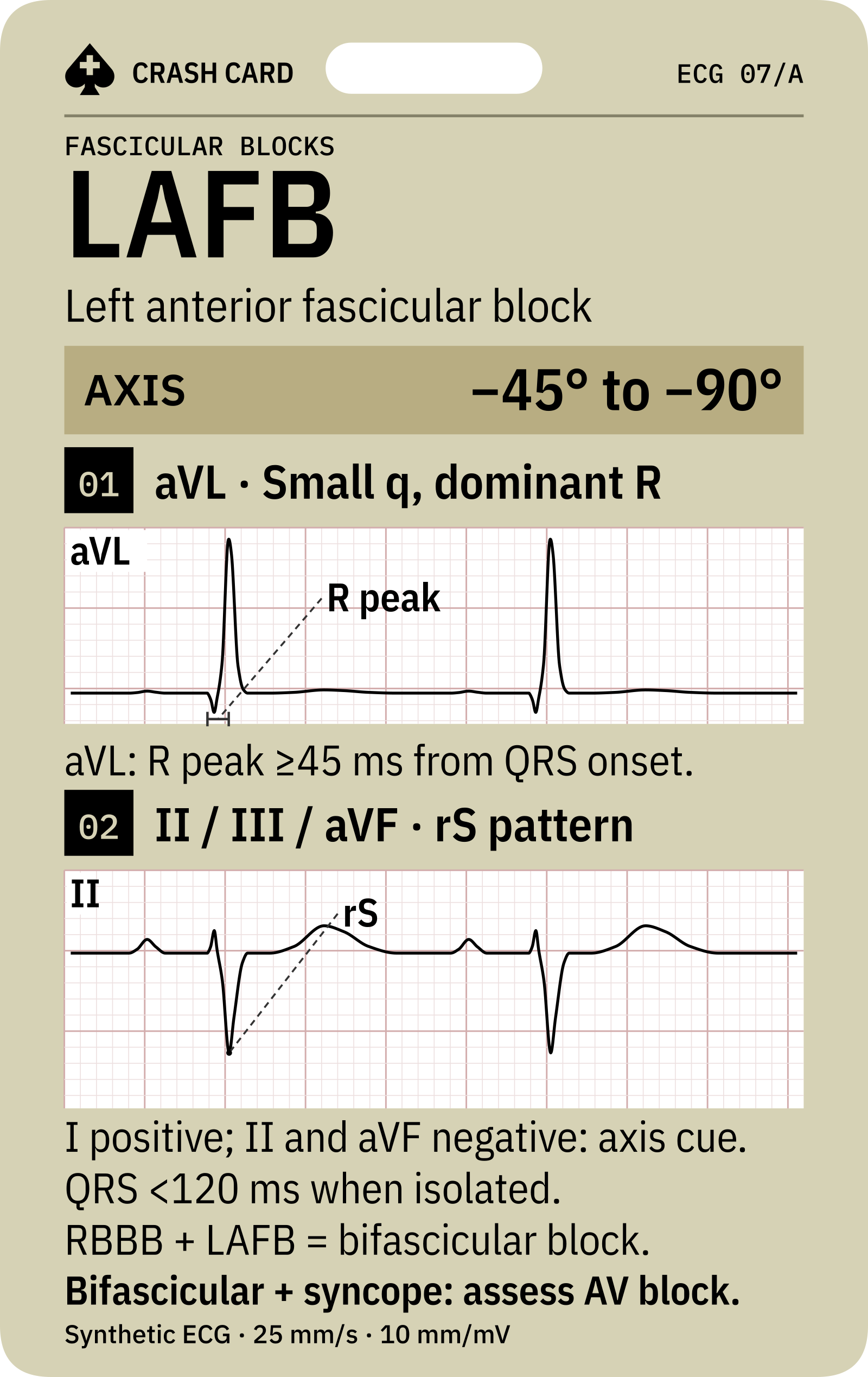

- LAFB: left axis deviation, qR in aVL and inferior rS complexes

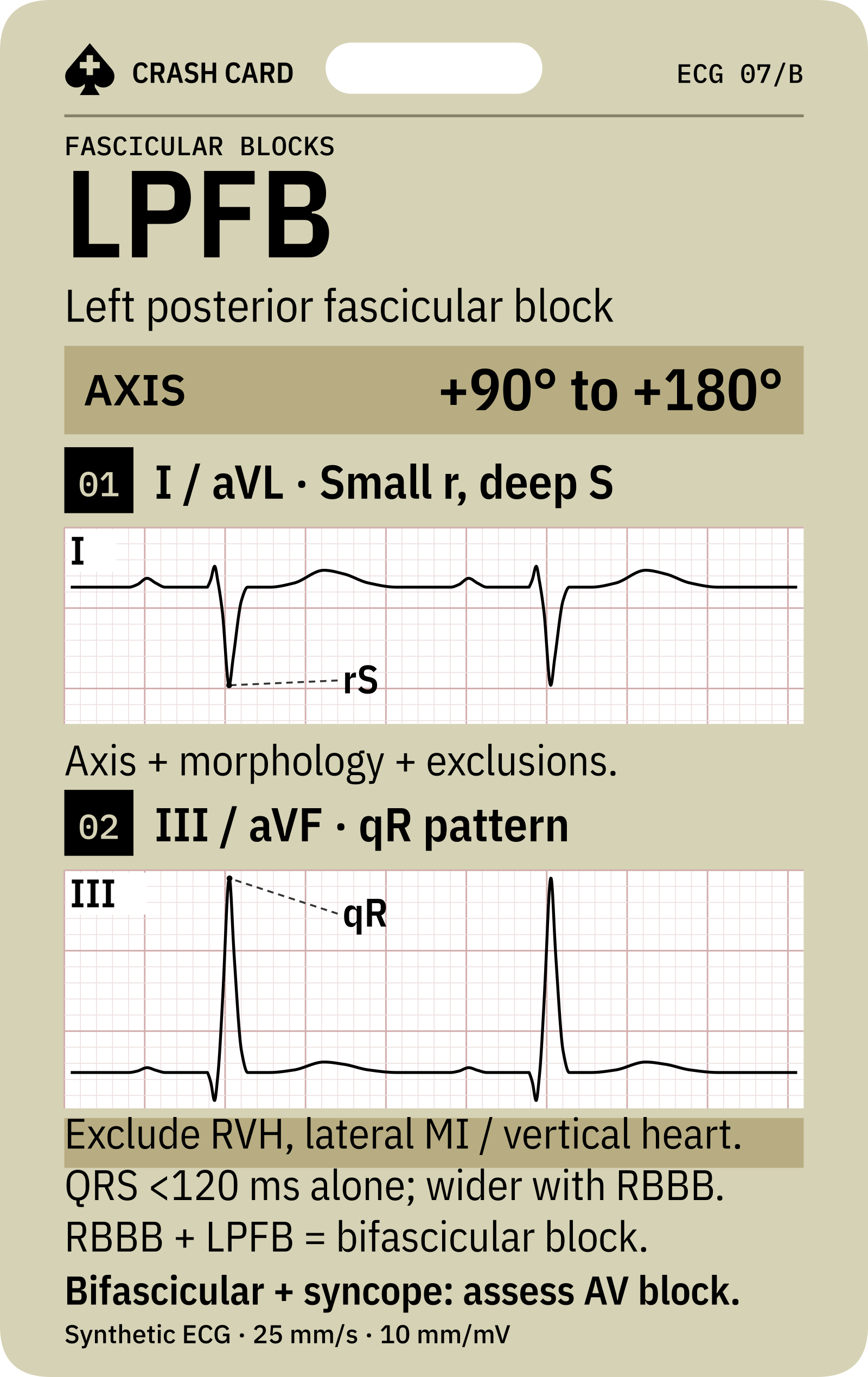

- LPFB: right axis deviation, lateral rS and inferior qR complexes
- Isolated QRS width, diagnostic exclusions and bifascicular-block context
One two-sided card · Tap the card to enlarge
Specifications
- Catalogue
- CC-ECG-07
- Revision
- Warm Coyote Final Teaching v2
- Format
- One CR80 portrait card · 85.60 × 53.98 mm
- Stock
- 30 mil white PVC
- Finish
- Matte
- Printing
- Full colour · two-sided
- Opening
- Slot punched
- Availability
- Available
